PIRTEK Endurance Series® Hose
When Your Machines & Equipment Must Keep Operating
The PIRTEK Endurance Series® hose line of compact hydraulic hoses is available at your local PIRTEK location throughout the United States. On-site PIRTEK technicians will have these high-performance hoses on hand for their field installations. The PIRTEK Endurance Series hose line provides superior flexibility and accommodates a tighter bend radius than conventional SAE hoses. It also stands up to high pressure and is tested at one million impulse cycles.
THE PIRTEK ENDURANCE
SERIES HOSE – The DNA of Endurance
Higher pressure ratings provide higher performance, reliability, suits more applications and extends service life.
Offers a tighter bend radius than conventional hoses. Tested and qualified with K and J series ferrules.
Exceeds SAE 100R2AT, SAE 100R16 and the EN 857 2SC standard.
THE PIRTEK ENDURANCE SERIES

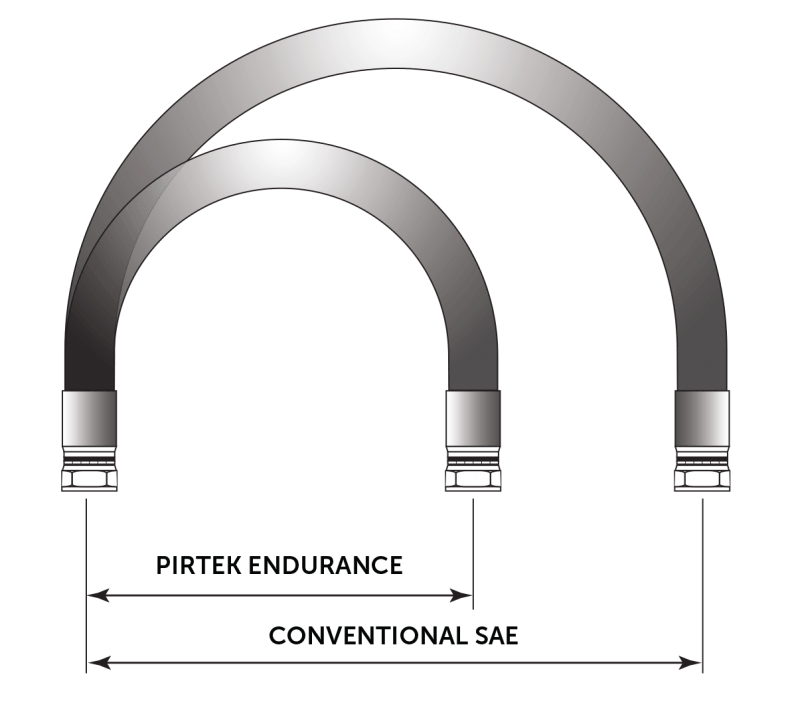

40% AVG. Better Bend Radius
Than Conventional SAE Hydraulic Hoses
Offering a tighter bending radius than conventional hoses.
SAE 100R1AT & R2AT hoses which results in:
- Shorter hydraulic hose assemblies
- Compact hydraulic circuits
- Speedy installation = Less downtime
MORE COMPACT & BETTER FLEXIBILITY
Ease of installation and routing to meet market needs with improved long term value.
- Compact OD with higher pressure than conventional SAE 100R2AT hoses
- High flexibility with significantly reduced force to bend
Learn more about our PIRTEK Endurance Series® Hose on page 17 of the Hose Catalog.
| PE2 | TWO WIRE BRAID HYBRID HOSE |
| HOSE TYPE |
Two wire braid hybrid |
| TUBE |
Black synthetic rubber resistant to oils |
| COVER | Black, smooth synthetic rubber resistant to oils, abrasion and weather conditions |
| REINFORCEMENT | Two high tensile steel braids |
| TEMPERATURE | - 40°F up to 212°F (257°F discontinuous) mineral/vegetable oils - 40°F up to 158°F water-based fluids, 32°F up to 150°F air - 40°F up to 158°F external ambient |
| APPLICATIONS | Extremely high-pressure compact hose with greater flexibility,suitable for mineral and vegetable oils, aqueous emulsions, water, air, and inert gases. Recommended for hydraulic applications where high pressure and tighter bend radius is needed. |
| REFERENCE | Exceeds SAE 100R16 and EN 857 2SC |
| HOSE TAILS | PIRTEK ‘K’ series up to 5/8”, PIRTEK ‘J’ series 5/8”, 3/4” and 1” |
| SPECIFICATIONS | MSHA, FRAS, USCG approved |
| PE4 | FOUR WIRE SPIRAL HOSE |
| HOSE TYPE |
Half bend radius 4 wire spiral |
| TUBE |
Black synthetic rubber resistant to oils |
| COVER | Black wrapped abrasion resistant synthetic rubber cover, resistant to oils, ozone, and weather conditions. |
| REINFORCEMENT | 5076 PSI (350 Bar) = Four high tensile steel spirals in - 20 6091 PSI (420 Bar) = Four high tensile steel spirals up to -16 |
| TEMPERATURE | - 40°F up to 248°F (257°F discontinuous) mineral/vegetable oils - 40°F up to 158°F water-based fluids 32°F up to 150°F water and air - 40°F up to 158°F external ambient. Prolonged usage with water or water-based fluids at temperatures above 158ºF will allow wire corrosion as a result of diffusion through the inner tube. |
| APPLICATIONS | Extremely high-pressure hose with high performance and half bend radius of SAE 100R13 and R15 hoses. Higher flexibility compared with conventional. spiral hoses. Suitable for mineral and vegetable oils, aqueous emulsions, water, air, and inert gases. Cover must be pin pricked if hose is to be used to convey air above 246 PSI (17 Bar). |
| REFERENCE | Exceeds SAE 100R13 (350 Bar) Exceeds SAE 100R15 (420 bar) |
| HOSE TAILS | 350 Bar = J Series 1 1/4" 420 Bar = K Series or J Series 3/8" and 1/2", J Series 5/8", 3/4" and 1" |
| SPECIFICATIONS | MSHA, FRAS, USCG approved |
| PE6 | SIX WIRE SPIRAL HOSE |
| HOSE TYPE |
Half bend radius 6 wire spiral |
| TUBE |
Black synthetic rubber resistant to oils. |
| COVER | Black wrapped abrasion resistant synthetic rubber cover, resistant to oils, ozone, and weather conditions. |
| REINFORCEMENT | 6091 PSI (420 Bar) = Six high tensile steel spirals -20 and -24 |
| TEMPERATURE | - 40°F up to 248°F (257°F discontinuous) mineral/vegetable oils - 40°F up to 158°F water-based fluids 32°F up to 150°F water and air - 40°F up to 158°F external ambient Prolonged usage with water or water-based fluids at temperatures above 158ºF will allow wire corrosion as a result of diffusion through the inner tube |
| APPLICATIONS | Extremely high-pressure hose with high performance and half bend radius of SAE R15 hoses. Higher flexibility compared with conventional. spiral hoses. Suitable for mineral and vegetable oils, aqueous emulsions, water, air, and inert gases. Cover must be pin pricked if hose is to be used to convey air above 246 PSI (17 Bar). |
| REFERENCE | Exceeds SAE 100R15 |
| HOSE TAILS | 420 Bar = H Series 1 1/4" and 1 1/2" |
| SPECIFICATIONS | MSHA, FRAS, USCG approved |
